Not all racks are created equal.

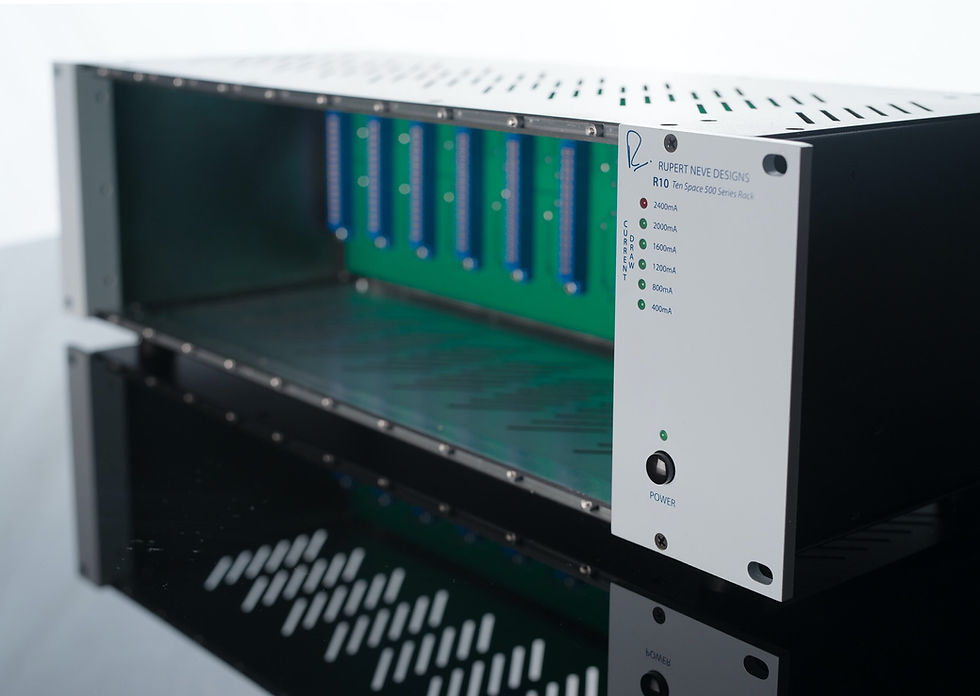

With abundant power and unrivaled build quality, the R10 delivers peace of mind for engineers who demand a higher degree of confidence in their 500 series racks.

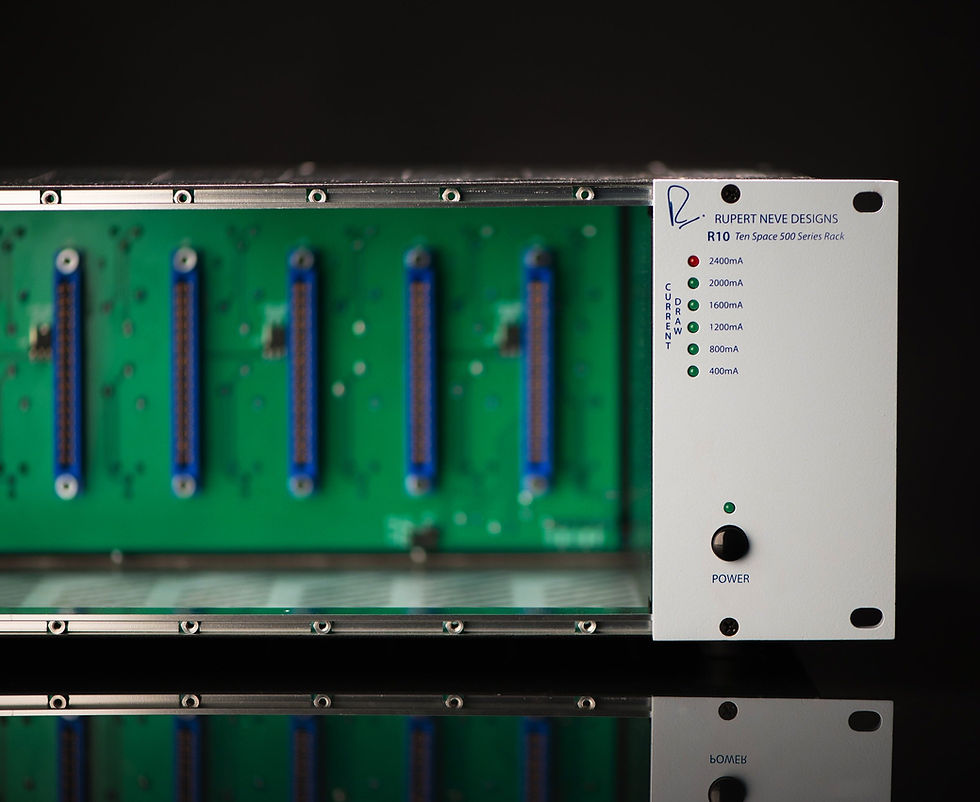

Power-wise, the R10 has more than 150% the required current for a 10-space chassis to prevent the power rails from failing under a higher-than-expected load. To help monitor and troubleshoot problematic modules, the R10 is equipped with LED current metering to show how much power is being used. The internal power supply itself has been carefully designed and double-shielded to avoid significant magnetic induction in any of the channel positions. With such attention to providing and monitoring power, the R10 helps your modules realize their fullest potential.
To ensure many years of use, the chassis is made of solid steel with sliding nuts to accommodate various manufacturers’ 500 Series modules. And of course, all connectors and fittings are of the very highest quality.
SPECIFICATIONS
DC VOLTAGE TO UNITS
+/-16VDC and +48VDC for phantom powerMAX CURRENT
2650mA total (2400mA modules and 250mA for phantom power)POWER REQUIREMENTS
100-240VAC, 50/60Hz, 50 WattsWEIGHT
14lbsDIMENSIONS
19” long x 7.5”deep x 5.25” high
