Classic tone and control on the go.

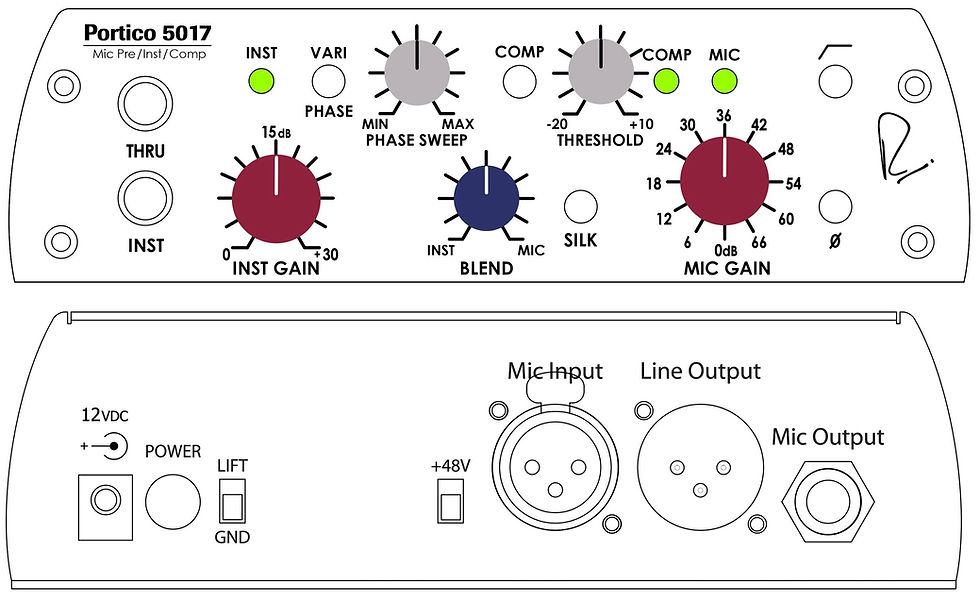

Comprised of a rugged, portable chassis with world-class preamp, compressor and DI circuits as well as two channel operation, Vari-phase, Silk and DI/mic blending capabilities, the Portico 5017 is an innovative and powerful tool for recording or live performance.

SPECIFICATIONS

FREQUENCY RESPONSE
Main Output, no load.
-0.2 dB @ 10 Hz
-3 dB @ 160 kHz
NOISE
Measured at Main Output, unweighted, 22 Hz - 22 kHz. Terminated 150 Ohm.
With gain at unity better than -100 dBu
With gain at 66 dB better than -62 dBu
Equivalent Input Noise better than -128 dBu
NOISE FACTOR
1.5 dB
HIGH PASS FILTER
80 Hz, 12 dB/Octave Bessel
MAXIMUM OUTPUT LEVEL
Maximum output from 20 Hz to 40 kHz is +23 dBu
TOTAL HARMONIC DISTORTION AND NOISE
@ 1 kHz, +20 dBu output: Main Output: Better than 0.001%
@ 20 Hz, +20 dBu output: Main Output: Better than 0.002%
SILK ENGAGED
Better than 0.2% Second harmonic
COMPRESSOR
THRESHOLD
Continuously Variable from -20 dBu to +10 dBu
RATIO
Fixed at 2:1
ATTACK & RELEASE
FAST MODE: Attack 40ms , Release 40ms
SLOW MODE: Attack 100ms , Release 350ms
PHANTOM POWER
+48 Volts DC +/- 1%
POWER REQUIREMENTS
12VDC is optimal voltage, but 9-15VDC is acceptable
CURRENT CONSUMPTION
@ 9VDC Current is 1.3 A typical: Power = 11.7W
@ 12VDC Current is 1.0 A typical: Power = 12.0 watts
@ 15VDC Current is 800 mA typical: Power = 12.0 watts
DIMENSIONS
7.5″ (deep) x 6.5″ (wide) x 2″ (high)
