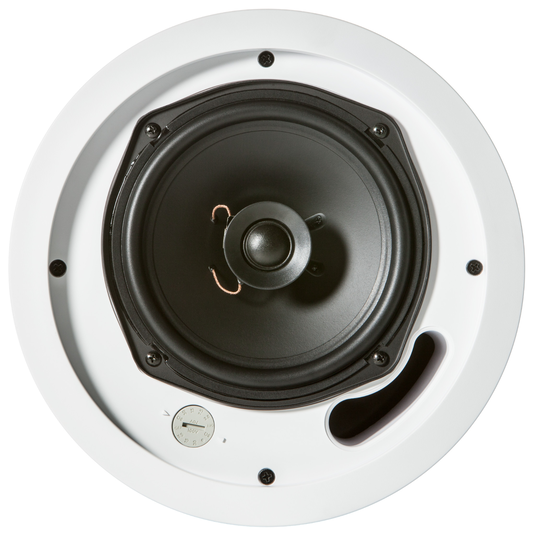

Two-Way 6.5" Coaxial Ceiling Loudspeaker
Control 16C/T is a full-range ceiling speaker consisting of a 165 mm (6.5 inch) high tech cone driver and a 19mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blindmount backcan for quick and easy installation.
General Specifications
Frequency Range (-10 dB)
62 Hz – 20 kHz
Power Capacity (at low-Z)
100 Watts Continuous Program Power ; 50 Watts Continuous Pink Noise
Transformer Taps
30 W, 15 W, 7.5 W @ 70V or 100V (plus 3.8 W @ 70V only)
Frequency Response (±3 dB)
96 Hz – 15 kHz
Nominal Sensitivity
91 dB
Nominal Coverage Angle
110° conical coverage
Directivity Factor (Q)
7.8
Directivity Index (DI)
8.2 dB
Rated Maximum SPL
108 dB @ 1 m (3.3 ft) average, 116 dB peak
Nominal Impedance
8 ohms (in direct/bypass 8Ω setting)
Crossover Network
12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver
LF Driver
165 mm (6.5 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
HF Driver
19 mm (3/4 in), highly-damped treated-silk dome, Kapton™ voice coil, liquid cooling, wide dispersion waveguide
Input Connector
Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
Connector Wiring
Pin 1 = + In ; Pin 2 = - In ; Pin 3 = + Loop Thru ; Pin 4 = - Loop Thru
Strain Reliefs
Strain relief for two cables or two flex conduits via coupled clamping mechanism
Materials
ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan
Safety Agency
UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
Safety Seismic Attachment
One point, top surface
Included Accessories
C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille
Optional Accessories
MTC-26NC new construction bracket ; MTC-26MR mud-ring construction bracket ; MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 60 mm (2.4 in, ordering one set = 24 dog-ears for 6 speakers) ; MTC-48TR tile rail for 1200 mm (4 ft) tile spans
